Features of my Android Test Automation Framework

[UPDATED - Added link to implementation details at the end of the post]

As I have shared in my previous few blog posts (A new beginning - entertainment on mobile, How to enable seamless running of appium tests on developer machines?), a few months ago, I embarked on a new journey as "Director - Quality" for the Viu product at Vuclip.

Here are a few details about our Viu app:

Viu offers high quality, popular, regional video content in various different languages for consumers in various different regions - Indonesia, Malaysia, India, Middle-East, Egypt ....

The consumers on the move could be using Android devices or iOS devices to watch their favourite content - either stream it directly via their Mobile Data plan, or they could have downloaded their preferred video at home / office and watch the saved video later.

The very interesting, and, challenging bit from Testing perspective, is that the app would behave differently based on from which part of the world the user is using it. This logic is not based on Geolocation.

Objective

My objective from functional test automation is:

• Get quick feedback, from every build and know if the app is working well. If NOT, then be able to get to the root cause ASAP.
• Provide feedback and confidence to stakeholders (Product team, Business team, etc.) on the "true" state of the product. There should be no surprises, for anyone!
• Run tests seamlessly by simulating different regions

Approach

To achieve this - I choose to go with the following tech-stack:

• Test Intent specification - cucumber-jvm - to specify the business intent, in the business terminology (expected to be) understood by all.
• Reports - cucumber-reports provide good, rich, meaningful and easily understandable reports which provide meaningful information about the state of the product.
• Device interaction - Appium / Java - implement the intent specified by cucumber-jvm. This will also allow us the flexibility to test against Android, iOS and Web.
• Continuous Integration (CI) server - Jenkins - to be able to run tests automatically when a new build is ready. Also, we integrated the cucumber-reports via the cucumber-reports plugin directly in Jenkins - so now all stakeholders interested in the reports just need to go to one place and get all information, in real time. No more need for Test Reports to be generated manually and sent across for everyone.

Test Execution environment

I looked at various cloud-based service providers (SauceLabs, Test Object, pCloudy, AWS Device Farm, etc.) who could run our tests on real-devices in their data centers. These tests would need to be triggered automatically via Jenkins when a new build (apk) is available, or as we add more tests. However, none of these providers could satisfy my requirements (without having to compromise significantly on my objectives).

Hence, finally decided to setup my own private Test Lab for this. Oh fun!

Framework Architecture

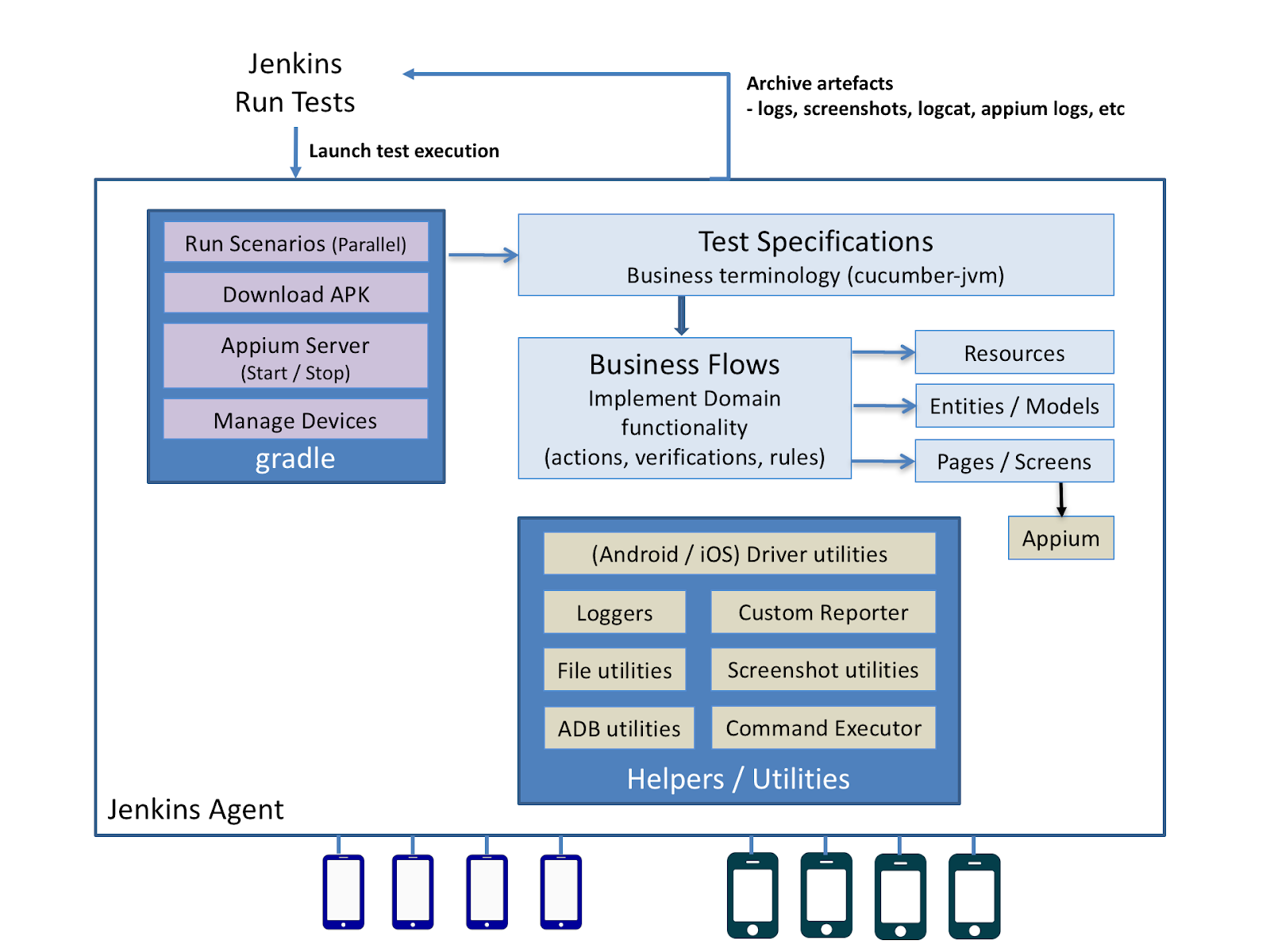

Below is the architecture of the framework that I came up with. This is based on the architecture I posted in my earlier blog post on “Assertion & Validations in Page Object” (https://essenceoftesting.blogspot.com/2012/01/assertions-and-validations-in-page.html)

Approach, Features & Capabilities of the Test Lab

• For Jenkins configuration, we configure the job using Jenkins file - to ensure our Jenkins configuration is also under version control. Also, since this is groovy scripting language, we can have good logic and processing done as part of the job execution.
• This helped us keep the configuration consistent and common across any type of job we had to run.
• The Jenkins job will trigger a set of commands on the Jenkins Agent.
• Jenkins Agents are setup on Mac Mini machines. Each Agent has only 1 executor. This is essential to prevent using a device that is already in use by another job / executor / agent.
• The Mac Mini (more to be added on demand) has a powered USB hub which connects upto 8 devices
• Depending on types of devices connected, we have as many Jenkins Agents (with 1 executor only) allocated for them.

Example:

• Samsung devices (with API Level 22) allocated to Jenkins agent - viu-e2e-samsung
• Motorola devices allocated to Jenkins agent - viu-e2e-moto

Infrastructure

• To manage and use the devices allocated to each node and more important - prevent other nodes using other devices, each node in Jenkins has an environment variable in its configuration - CONNECTED_DEVICE_IDS - a comma separated list of devices allocated to this node.
• This approach makes it easy to change / add / remove devices on the fly. All we need to do in such cases is update the device ID in the appropriate node’s CONNECTED_DEVICE_IDS environment variable
• Our gradle file, reads the CONNECTED_DEVICE_IDS environment variable, and finds devices connected on the Mac Mini matching the provided device ids. This simple technique allows specific device allocation from the pool of devices to each node.
• PS: If anyone does an error and provides the same device id for multiple nodes, we all know what will happen. These are areas where we need to be very cautious in our execution and maintenance.
• The URL for the Android APK file is also passed to the gradle file as a an environment variable. We download the APK file once before test execution starts.
• Functional (end-2-end) Automation is painfully slow to run. To get the feedback quickly, we have to run this in parallel. All existing approaches to running cucumber-jvm tests in parallel failed to meet our requirement. I wanted to run each scenario in parallel, on whichever device is free (from the matching devices list). Eventually ended up writing a small script that allows me to run scenarios in parallel.

• Managing Appium Server (start / stop) is another important activity - which is required to be done just once per device. Gradle manages that as well.

Next steps

• Stabilize parallel test execution (problems with Android 7)
• Start with iOS app automation
• Start with Web automation (www.viu.com)

• Share gradle file with community, if anyone interested.

• [UPDATED] You can find the details of the implementation here

Slides from vodQA Pune - Less Talk, Only Action! now available

vodQA-Pune - Less Talk, Only Action! was held on on Saturday, 27th Aug 2016, 8.30am - 5.30pm at ThoughtWorks, Pune.

Agenda

Abstracts with Slides

1. Automating Web Analytics - Why? How?

Do you know –

• What is Web Analytics?How does Web Analytics work?
• Why is it important? How to test Web Analytics?
• How can we ensure correct data is sent to the Web Analytics server, every time, for all the actions?

Attend this workshop to learn ‘What is Web Analytics?’ and why it is an extremely important aspect of Software Development & Testing for your product / service to succeed!

We will share some techniques for testing Web Analytics - in a non-automated way - and why that is very challenging and error-prone.

We will learn, via hands-on activity, about WAAT - Web Analytics Automation Testing Framework (https://essenceoftesting.blogspot.com/search/label/waat) - an open-source solution, to automate validation of correct information / tags being sent to the Web Analytic server for different user actions as part of your regular Selenium-WebDriver Test Automation Framework.

Lastly, we will see how the impact of Analytics has changed dramatically with more adoption and spread of IoT (Internet of Things) and Big Data, and what we need to do to be part of the change, if not influencers of change!

Slides: automating-web-analytics

2. Performance testing with Gatling for Beginners

Gatling is a server side performance testing tool. This workshop aims at giving introduction to Gatling and facilitating participants to write their first performance tests using Gatling.

• Brief intro to Gatling
• Using Postman to check stub server(created using mountebank for workshop)
• Write a sample test using gatling (pre set up machines are provided)

Slides: gatling-performance-workshop

3. Game of Test Automation

We are going to use a game to work out the WHY, WHAT and HOW of test automation within the context of consumers, application, skillset, mindset, etc.

4. Security Testing - Operation Vijay

It is now the days of the web. All businesses move their applications online for their customers to use.

Many of these applications contain critical data of the customers such as credit card details, their personal details and so on. These data are very valuable. If these data fall in the wrong hands, they can have disastrous consequences.

Attacks on these systems can destroy the trust that the customers have for the business, they can cause great losses to the customers as well as the business, and so on.

The motivation behind attacks could be different like earning money, earning popularity, destroying a competitor company, etc.

No matter what the intention of the attack is, we need to develop safe applications and we need to know the various vulnerabilities and the consequences of our decisions when we develop applications.

Similarly, we should be aware of the various vulnerabilities before we test the applications so that we can try and exploit it during the testing phase and ensure better quality and safer applications.

Slides: security-testing-operation-vijay

5. Automate your Mobile tests with Appium

• Introduction to Appium.
• Appium design for Android and iOS
• How to locate elements on android and iOS applications(Inspector).
• Hands-on code snippet for android and iOS(Wordpress as sample app)
• Generating reports (ExtentReports)
• Evolve code snippet written above into a Page Object Framework.


Slides: mobile-automation-using-appium

6. Increase Automation to REST

• What are web services and why we use them?
• How to test a web service in multiple ways?
• Increased familiarity with automation

Tools used : rest client, postman (mention alternatives), unirest JAVA and requests python

Slides: increase-automation-to-rest, api-webservice-setup-instructions

7. Let's cook Cucumber

In this workshop we will be covering:

• Advantages of BDD through cucumber example.
• Framework setup along with JAVA and Selenium.
• Writing one end to end test case in real world.
• If time permits - will be covering basic Refactoring


Slides: lets-cook-cucumber


8. Mobile Automation using Espresso

Imagine a situation where every commit spits out a build that can be deployed to production with confidence. In today's startup era, this can be a huge boost to business as it will reduce the time to market. UI Automation for mobile apps, be it native or hybrid, has been painful since long. But with mature frameworks coming up and Google/Apple realizing the importance of such tools, UI Automation is gaining traction in the mobile space.

This talk is basically to understand what and why of espresso along with automating a simple scenario using espresso.

Slides: getting-high-on-espresso

Perils of Page-Object Pattern

I spoke at Selenium Conference (SeConf 2014) in Bangalore on 5th September, 2014 on "The Perils of Page-Object Pattern".

Page-Object pattern is very commonly used when implementing Automation frameworks. However, as the scale of the framework grows, there is a limitation on how much re-usability really happens. It inherently becomes very difficult to separate the test intent from the business domain.

I want to talk about this problem, and the solution I have been using - Business Layer - Page-Object pattern, which has helped me keep my code DRY.

The slides from the talk are available here. The video is available here.

Video taken by professional:


Video taken from my laptop:


Slides:

Perils of Page-Object Pattern from Anand Bagmar

If you want to see other slides and videos from SeConf, see the SeConf schedule page.

Update from StarEast 2014 - "Build the 'right' regression suite using BDT"

I had a great time speaking about how to "Build the 'right' regression suite using Behavior Driven Testing (BDT)".

This time, I truly understood the value of practice, dry-runs. Before the webinar for NY Selenium Meetup group, I presented the content to my colleagues in the ThoughtWorks, Pune office and also shared the same with the hivemind @ ThoughtWorks and got great feedback. That helped me tremendously in making my content more rock-solid and well-tuned.

As a result, I was able to deliver the content, to a very enthusiastic and curious audience, who turned up in great numbers (>105) to hear about what the $@$#^$% is BDT, and how can it help in avoiding the nightmare of long, unfruitful, painful Regression Test cycles.

The slides from the talk are available here and the video is available here.

Update from Webinar on "Build the 'right' regression suite using BDT" for NY Selenium Meetup

I had a challenging, yet good time speaking in a Webinar for the New York Selenium Meetup community on how to "Build the 'right' regression suite using Behavior Driven Testing (BDT)". This webinar was conducted on 6th May 2014 at 6.30pm and I am very thankful to Mona Soni to help organize the same.

Before I speak about the challenges, here are the slides and the audio + screen recording from the webinar. The video is not cleaned-up ... I had started recording the session and then we did wait for a few minutes before we started off, but you can forward to around the 01:15 min mark and audio starts from that point.

This was challenging because of 2 main reasons:
> With a webinar, I find it difficult to connect with the audience. I am not able to gauge if the content is something they already know about, so I can proceed faster. Or, if they are not following, I need to go slower. Or, the topic is just not interesting enough to them. There may be other reasons as well, but I just do not get that real-time feedback which is so important when explaining a concept and a technique.
Though there were some good interactions and great questions in form of chat, I miss that eye-to-eye connect. This webinar was conducted using GoToMeeting. Maybe next time I do this, I need to try to get webcams enabled for atleast a good few people attending to understand that body language.

> The 2nd challenge I had was purely my own body not being able to adjust well enough. I had flown in from India to Florida to speak in STAREAST 2014 conference just a couple of days ago, and was still adjusting to the jet-lag. Evening times turned out to be my lowest-energy points on the day and I felt myself struggling to keep focus, talk and respond effectively. I would like to apologize to the attendees if they felt my content delivery was not up to the mark for this reason.

I appreciate any feedback on the session, and looking forward to connect with you and talk about Testing, Test Automation, my open-source tools (TaaS, WAAT, TTA) and of course BDT!

Sample test automation framework using cucumber-jvm

I wanted to learn and experiment with cucumber-jvm. My approach was to think of a real **complex scenario that needs to be automated and then build a cucumber-jvm based framework to achieve the following goals:

• Learn how cucumber-jvm works
• Create a bare-bone framework with all basic requirements that can be reused

Once you know the basics and fundamentals of building a scalable and maintainable Test Automation frameworks, it was really easy to apply my past learning and experiences to learn cucumber-jvm and build a framework from scratch.

So, without further ado, I introduce to you the cucumber-jvm-sample Test Automation Framework, hosted on github.

Following functionality is implemented in this framework:

• Tests specified using cucumber-jvm
• Build tool: Gradle
• Programming language: Groovy (for Gradle) and Java
• Test Data Management: Samples to use data-specified in feature files, AND use data from separate json files
• Browser automation: Using WebDriver for browser interaction
• Web Service automation: Using cxf library to generate client code from web service WSDL files, and invoke methods on the same
• Take screenshots on demand and save on disk
• Integrated cucumber-reports to get 'pretty' and 'meaningful' reports from test execution
• Using apache logger for storing test logs in files (and also report to console)
• Using aspectJ to do byte code injection to automatically log test trace to file. Also creating a separate benchmarks file to track time taken by each method. This information can be mapped separately in other tools like Excel to identify patterns of test execution.

Feel free to fork and use this framework on your projects. If there are any other features you think are important to have in a Test Automation Framework, let me know. Even better would be to submit pull requests with those changes, which I will take a look at and accept if it makes sense.

** Pun intended :) The complex test I am talking about is a simple search using google search.
